What steps should be followed when replacing a CV joint boot on BMW X5?

When replacing a CV joint boot, utilize a complete CV joint boot repair kit that includes a new boot, clamping bands, special lubricant, and a new inner CV joint circlip, available from an authorized BMW dealer parts department. The outer CV joint cannot be removed from the axle shaft, so it is necessary to first remove the inner joint and boot to replace the outer CV boot. If the CV joints are worn or defective, a complete rebuilt axle shaft can be obtained from an authorized BMW dealer parts department. Begin by removing the axle shaft, then, while working with the axle shaft on a bench, cut off the old boot clamps and remove the boot, cleaning off old grease from the joint and shaft. Remove the dust cover from the CV joint and take off the circlip retaining the joint inner hub to the axle shaft, then press off the joint cap. Support the inner hub with a special tool and press the axle shaft out of the joint using another special tool, ensuring all old lubricant is cleaned off the shaft splines and inner joint splines. If disassembly of the CV joint is necessary for cleaning and inspection, matchmark the inner and outer race and intermediate ball cage to allow for proper reassembly. To inspect the CV joint, clean away the grease and check for galling, pitting, and other signs of wear or damage, noting that polished surfaces or visible ball tracks alone do not necessarily warrant replacement, while discoloration from overheating indicates a lack of lubrication and the need for a new CV joint. Slide the CV joint boot onto the axle shaft and apply a heavy-duty locking compound to the drive axle splines, positioning the new CV joint on the shaft with the raised side of the hub facing the shaft. Avoid letting the locking compound contact the balls in the joint, applying only a thin coat to cover the splines. While supporting the axle shaft with a special tool, press the inner hub of the CV joint onto the shaft and install a new circlip, followed by new boot clamps. Use sealing gel to secure the dust cover to the CV joint before reinstallation, taking care not to let the ball hub pivot too far in the outer ring of the joint to prevent the balls from falling out. Before installing each small boot clamp, ensure to "burp" the boot by flexing the CV joint, using a small screwdriver inserted between the boot and the axle shaft to assist in the process.

Genuine BMW X5 CV Boot

Axle Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Series

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 CV Boots found

View related parts

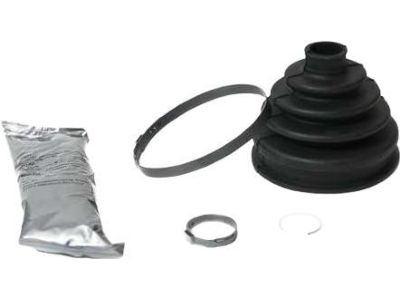

BMW X5 Repair Kit Bellows, Exterior
Part Number: 31607608096
$68.31 MSRP: $90.45
You Save: $22.14 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2014-2018 BMW X5 | xDrive35d(F15), xDrive35i(F15), xDrive40e(F15), xDrive50i(F15)
View related parts

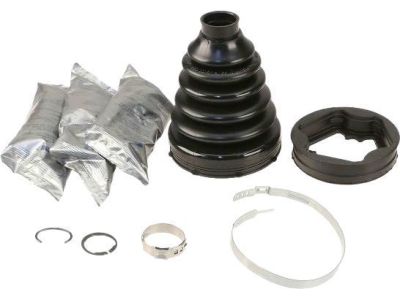

BMW X5 Repair Kit Bellows, Exterior
Part Number: 31607545108
$68.31 MSRP: $90.45
You Save: $22.14 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2007-2013 BMW X5 | 3.0si(E70), 4.8i(E70), xDrive30i(E70), xDrive35d(E70), xDrive35i(E70), xDrive48i(E70), xDrive50i(E70)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 31608680223
$88.32 MSRP: $118.90
You Save: $30.58 (26%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Boot, Inner Boot, Inner CV Joint Boot
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2019-2024 BMW X5 | 6 Cyl 3.0 L GAS, 6 Cyl 3.0 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.0 L PLUG-IN HYBRID EV-GAS (PHEV), 8 Cyl 4.4 L GAS, 8 Cyl 4.4 L MILD HYBRID EV-GAS (MHEV), M50i(G05), xDrive40i(G05), xDrive50i(G05)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 31607545107
$68.31 MSRP: $90.45
You Save: $22.14 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2007-2013 BMW X5 | 3.0si(E70), 4.8i(E70), xDrive30i(E70), xDrive35d(E70), xDrive35i(E70), xDrive48i(E70), xDrive50i(E70)
View related parts
BMW X5 Repair Kit Bellows, Exterior
Part Number: 31607507402
$51.81 MSRP: $68.61
You Save: $16.80 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2000-2006 BMW X5 | 3.0i(E53), 4.4i(E53), 4.6is(E53), 4.8is(E53)
View related parts
BMW X5 Repair Kit Bellows, Exterior
Part Number: 33211229221
$83.99 MSRP: $106.23
You Save: $22.24 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2000-2006 BMW X5 | 3.0i(E53), 4.4i(E53)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 33211229205
$104.63 MSRP: $132.33
You Save: $27.70 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2000-2006 BMW X5 | 3.0i(E53), 4.4i(E53)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 31607565315
$62.14 MSRP: $82.29
You Save: $20.15 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit, Inner Boot
- Replaces: 31-60-7-507-403
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2000-2006 BMW X5 | 3.0i(E53), 4.4i(E53), 4.6is(E53), 4.8is(E53)
View related parts
BMW X5 REPAIR KIT BELLOWS
Part Number: 32106890060
$61.02 MSRP: $86.38
You Save: $25.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit, Tie Rod Boot
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2019-2024 BMW X5 | 6 Cyl 3.0 L GAS, 6 Cyl 3.0 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.0 L PLUG-IN HYBRID EV-GAS (PHEV), 8 Cyl 4.4 L GAS, 8 Cyl 4.4 L MILD HYBRID EV-GAS (MHEV), M50i(G05), xDrive40i(G05), xDrive50i(G05)
View related parts
BMW X5 Repair Kit Bellows, Exterior
Part Number: 33217572446
$108.90 MSRP: $146.61
You Save: $37.71 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit, Inner Boot, Outer Boot
- Replaces: 33-20-7-518-902
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2014-2018 BMW X5 | xDrive35d(F15), xDrive35i(F15), xDrive50i(F15)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 33207550164
$112.25 MSRP: $151.13
You Save: $38.88 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit, Inner Boot
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2014-2018 BMW X5 | xDrive35d(F15), xDrive35i(F15), xDrive50i(F15)
View related parts
BMW X5 Repair Kit Bellows, Exterior
Part Number: 31607565316
$51.81 MSRP: $68.61
You Save: $16.80 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2000-2006 BMW X5 | 3.0i(E53), 4.4i(E53), 4.6is(E53), 4.8is(E53)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 31607608095
$68.31 MSRP: $90.45
You Save: $22.14 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2014-2018 BMW X5 | xDrive35d(F15), xDrive35i(F15), xDrive40e(F15)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 31608636505
$68.31 MSRP: $90.45
You Save: $22.14 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2014-2018 BMW X5 | xDrive50i(F15)
View related parts
BMW X5 Repair Kit Bellows, Exterior
Part Number: 33211229213
$85.21 MSRP: $107.77
You Save: $22.56 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit, Outer Boot
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2001-2006 BMW X5 | 3.0i(E53), 4.4i(E53), 4.6is(E53), 4.8is(E53)
View related parts
BMW X5 Repair Kit Bellows, Interior
Part Number: 33211229209
$105.44 MSRP: $133.35
You Save: $27.91 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit, Inner Boot
- Warranty: This genuine part is guaranteed by BMW's factory warranty.
Fits the following Vehicles:
- 2001-2006 BMW X5 | 3.0i(E53), 4.4i(E53), 4.6is(E53), 4.8is(E53)

BMW X5 CV Boot

If you are looking for OEM BMW X5 CV Boot, we highly recommend to shop with us. Not only do we offer the most budget friendly prices, but we also provide fast delivery. In addition, we have a hassle-free return policy on all genuine BMW X5 CV Boot that come backed by the manufacturer's warranty.

BMW X5 CV Boot Parts Questions & Experts Answers

Repair Kit Bellows, Exterior
31607507402
Q: What steps should be followed when replacing a CV joint boot on BMW X5?
A: When replacing a CV joint boot, utilize a complete CV joint boot repair kit that includes a new boot, clamping bands, special lubricant, and a new inner CV joint circlip, available from an authorized BMW dealer parts department. The outer CV joint cannot be removed from the axle shaft, so it is necessary to first remove the inner joint and boot to replace the outer CV boot. If the CV joints are worn or defective, a complete rebuilt axle shaft can be obtained from an authorized BMW dealer parts department. Begin by removing the axle shaft, then, while working with the axle shaft on a bench, cut off the old boot clamps and remove the boot, cleaning off old grease from the joint and shaft. Remove the dust cover from the CV joint and take off the circlip retaining the joint inner hub to the axle shaft, then press off the joint cap. Support the inner hub with a special tool and press the axle shaft out of the joint using another special tool, ensuring all old lubricant is cleaned off the shaft splines and inner joint splines. If disassembly of the CV joint is necessary for cleaning and inspection, matchmark the inner and outer race and intermediate ball cage to allow for proper reassembly. To inspect the CV joint, clean away the grease and check for galling, pitting, and other signs of wear or damage, noting that polished surfaces or visible ball tracks alone do not necessarily warrant replacement, while discoloration from overheating indicates a lack of lubrication and the need for a new CV joint. Slide the CV joint boot onto the axle shaft and apply a heavy-duty locking compound to the drive axle splines, positioning the new CV joint on the shaft with the raised side of the hub facing the shaft. Avoid letting the locking compound contact the balls in the joint, applying only a thin coat to cover the splines. While supporting the axle shaft with a special tool, press the inner hub of the CV joint onto the shaft and install a new circlip, followed by new boot clamps. Use sealing gel to secure the dust cover to the CV joint before reinstallation, taking care not to let the ball hub pivot too far in the outer ring of the joint to prevent the balls from falling out. Before installing each small boot clamp, ensure to "burp" the boot by flexing the CV joint, using a small screwdriver inserted between the boot and the axle shaft to assist in the process.
