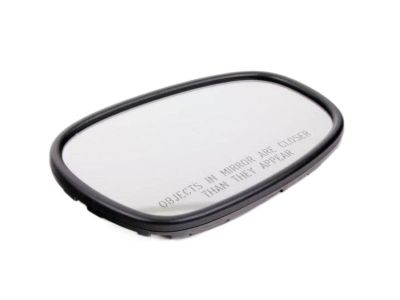

BMW 51167230980 Mirror Glass, Heated, Convex, Right

You can Select Your Vehicle to check if 51167230980 fits your vehicle.

Begin by removing the door inner trim panel to take out the exterior mirror assembly. Take off the plastic trim carefully from the front of the door frame. To remove the mirror from the door, unplug the mirror electrical connector and remove Torx bolts that hold it in place. Get rid of a rubber seal between a mirror and a door. Tilt that outer side of this mirror towards its center, then insert a wide plastic or wooden wedge between that outer edge and housing of this mirror glass. Gently separate glass from motor and take away from your mirror. Whenever necessary, disconnect wiring connectors for heating elements on mirrors. After you remove such glass, then do proceed with what you did with this one glass as well as eliminate one bolt holding it in place. Remove its engine by dragging it outside of housing attached to your window together with disconnection of electric connectors to it is external surface only when all clips are accessible upon removal of such glasses while mounting clips were detached safely after taking off glasses too before pulling out any cover shielding casing's rear part thereby preventing any debris from entering inside via ventilation passage that could interfere negatively with adjusting mechanisms available within an instrument cluster right behind where speedometer cables pass through before securing flexible covering screws into respective holes required thereon closer towards you but still far enough apart not touching each other ; depending which type has once been used (either screw type or plug type), use appropriate tooling like ratchet wrenches fitted either onto socketed spanners equal sizes providing good grip over heads during removal process due their geometry difference thus avoid rounding ends due excessive tightening; be sure wear safety goggles protective clothing since need pull away firmly grasp reversely rotate body slightly applying sufficient force rotating using arm joint until reaches maximum allowed limit therefore expose actual hinges access these interference points positioned above headlights Once securely installed they should stay secure so make sure tighten fasteners properly before replacing covers connecting terminal(s).

Move mirror glass carefully and slowly, ensuring added protection by covering it completely with masking tape or wearing hand protection during removal. Ensure the mirror glass is at or above room temperature before removal to prevent breakage of small plastic parts or glass. Tilt the mirror housing outward, and with the glass squarely positioned in the housing frame, push the bottom of the glass fully into the housing. Insert a plastic wedge under the center of the glass and gently pry it up until it disengages from the retaining clips. Lift the glass out and store it safely. For installation, position the mirror glass in the housing while aligning the plastic retainers, then carefully lever the top center of the glass down to engage the retaining clips. Finally, check that the mirror moves freely in all directions.
