6 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

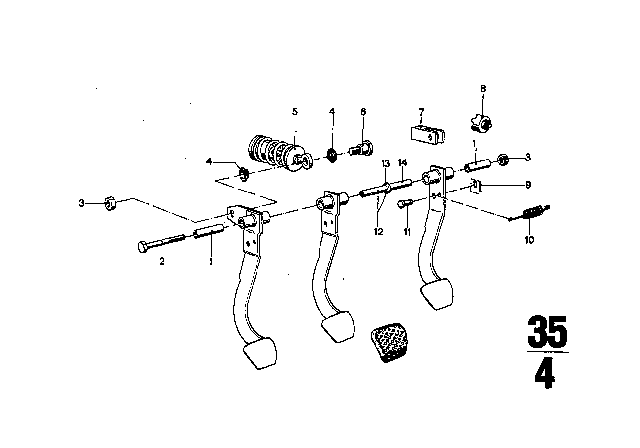

- 1.Pedals-supporting bracket
- 2.Pedals-supporting bracket
- 3.Pedals-supporting bracket
- 4.Pedals-supporting bracket
- 5.Pedals-supporting bracket
- 6.Pedals-supporting bracket
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
01 07119922038Hex nut- Extra Info:
M5
- Require Quantity:
4
- Package Quantity:
1
- Replaced By:
07119905729
01
35111108673Cap- Production Date:
196812 - 197511
01
35211100440Brake pedal- Production Date:
196812 - 197511
01
35211100707Brake pedal- Production Date:
196906 - 197310
01
35211100716Bush bearing- Production Date:
196812 - 197511
- Require Quantity:
2
01
35211100716Bush bearing- Production Date:
196812 - 197511
01
02
07119900052Washer- Extra Info:
A8,4-200
- Production Date:
Till 197511
- Require Quantity:
2
- Package Quantity:
1
- Replaced By:
07119907030
02
02
07119987503Ball joint- Extra Info:
A8
- Require Quantity:
4
02
35111108687Supporting Bracket- Production Date:
196812 - 197310
02 02 02
61131354345Plug- Extra Info:
D=26MM
- Production Date:
196906 - 197511
03
03
35311100733Clutch pedal- Production Date:
196812 - 197310
03
35411200198Pull rod with thrust ring- Production Date:
196906 - 197511
11310631136Compression spring- Production Date:
196906 - 197511
04
35111105681Cover- Production Date:
196906 - 197511
04
35411105833Lever- Production Date:
196812 - 197310
04
35411105941Lever- Production Date:
196906 - 197511
35111117687Gasket- Production Date:
196906 - 197511
05 05
35411200194Pull rod- Production Date:
196906 - 197511
07 07119904198Washer- Extra Info:
ZNS3
- Production Date:
196812 - 197511
- Replaced By:
07119904168
07119931020Washer- Extra Info:
A10,5
- Production Date:
196812 - 197511
- Replaced By:
07119904168
07 07 07
07119932095Wave washer- Extra Info:
B8
- Production Date:
Till 197511
- Require Quantity:
4
- Package Quantity:
10
- Replaced By:
07119904115
07119932095Wave washer- Extra Info:
B8
- Production Date:
Till 197511
- Require Quantity:
6
- Package Quantity:
10
- Replaced By:
07119904115
08 35411104248Clamp- Production Date:
196812 - 197511
- Require Quantity:
2
- Package Quantity:
1
08
08
07119904032Hex nut- Extra Info:
M8-8-ZNS3
- Production Date:
196812 - 197511
- Require Quantity:
4
- Package Quantity:
1
- Replaced By:
07119905515
07119904032Hex nut- Extra Info:
M8-8-ZNS3
- Production Date:
196812 - 197511
- Require Quantity:
6
- Package Quantity:
1
- Replaced By:
07119905515
07119905515Hex nut- Extra Info:
M8-8-ZNNIV SI
- Production Date:
196812 - 197511
- Require Quantity:
4
- Package Quantity:
1
07119905515Hex nut- Extra Info:
M8-8-ZNNIV SI
- Production Date:
196812 - 197511
- Require Quantity:
6
- Package Quantity:
1
07119922856Hex nut- Extra Info:
M8-ZNS
- Production Date:
196812 - 197511
- Require Quantity:
4
- Package Quantity:
1
- Replaced By:
07119905515
07119922856Hex nut- Extra Info:
M8-ZNS
- Production Date:
196812 - 197511
- Require Quantity:
6
- Package Quantity:
1
- Replaced By:
07119905515
09
09
07119945160Split pin- Extra Info:
3X15
- Production Date:
196812 - 197103
09
10 10
11 11
12
07119931698Washer- Extra Info:
10,5
- Production Date:
196812 - 197511
- Replaced By:
07119907114
12 23711246623Washer- Extra Info:
A8,4X25
- Require Quantity:
2
- Package Quantity:
1
- Replaced By:
07147201571
12
35411200683Support- Production Date:
196906 - 197511
07119932095Wave washer- Extra Info:
B8
- Production Date:
196906 - 197511
- Require Quantity:
2
- Package Quantity:
10
- Replaced By:
07119904115
13
13
07119913612Hex Bolt- Extra Info:
M8X16
- Production Date:
196906 - 197511
- Require Quantity:
2
- Package Quantity:
1
35411105103Pull rod- Production Date:
196906 - 197511
16
35411102597Intermediate lever- Production Date:
196812 - 197511
